Freewell Magnetic VND System


Introduction
Welcome to a new era in photographic filters with Freewell's Magnetic VND Filter System. Designed to offer unmatched convenience and flexibility, this innovative system is a game-changer for photographers and videographers seeking to quickly adapt to varying light conditions without sacrificing quality.



Available Sizes
The system is available in a variety of sizes: 62mm, 67mm, 72mm, 77mm, 82mm, and 95mm. The 58mm size has been discontinued.

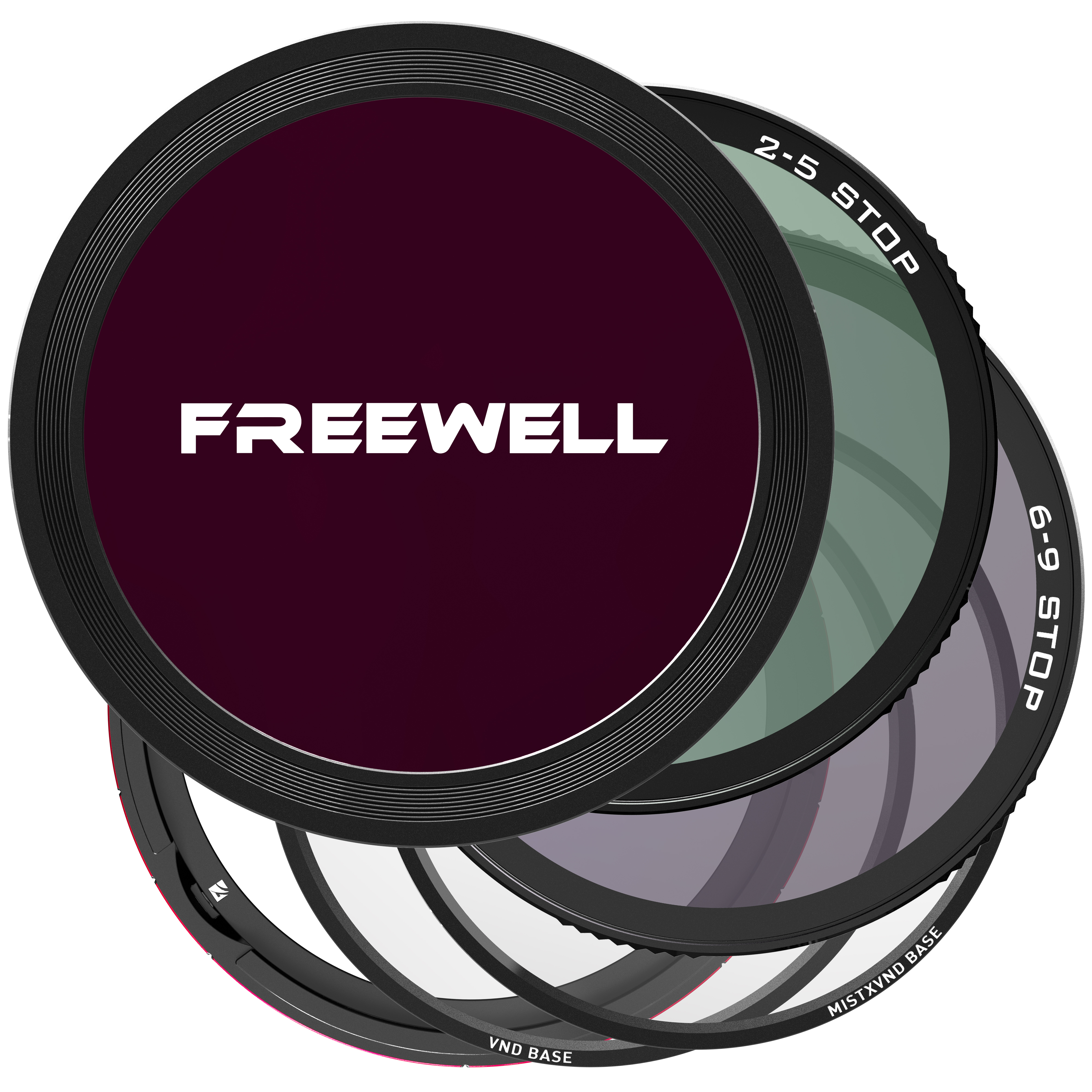

In the Box: VND2-5/CPL, VND6-9/ND32-CPL, VND Base, MISTXVND Base, Base Ring, Lens Cap, Microfiber Cleaning Cloth, Protective Case

Filter Options and Usage
  1. VND Filters (2 to 5 stops and 6 to 9 stops): For variable neutral density (VND) control, select the desired VND filter and align the 'A' mark on the filter with the 'A' on the base ring for proper placement. This ensures accurate stop increments and optimal image quality.
  2. Using CPL Feature: To activate the circular polarizer (CPL), remove any VND filters and attach the CPL filter with the inscription facing outward. This setup allows for 360-degree rotation to adjust polarization effects.
VND6-9/ND32CPL Usage
  1. With VND Base: Mount the VND6-9 filter facing outward in conjunction with the VND Base to attain a Neutral Density effect between 6 and 9 stops, suitable for controlling light intake in very bright conditions.
  2. Switching to ND32CPL: For enhanced polarization with light reduction, replace the VND filter with the ND32CPL filter after removing the one-stop ND glass from the base ring.
Components
  1. VND Base: Use together with VND1-5/CPL or VND6-9/ND32CPL filters to assist in achieving the desired variable light reduction.
  2. VNDXMIST Base: Employ in combination with VND1-5/CPL or VND6-9/ND32CPL filters to add a Glow Mist effect, enhancing the artistic flair of photos with a soft, diffused look.
Product Features
  1. Magnetic Attachment: Quick and secure filter changes with a magnetic connection system.
  2. Versatile Options: Easily switch between ND, VND, CPL, and ND32CPL configurations to suit various lighting conditions.
  3. High-Quality Optics: Each filter is crafted with Freewell’s renowned high-definition optical glass and features 18 layers of multi-coating for clarity and durability.
  4. GimbalSafe Technology: Lightweight design ensures compatibility with gimbal systems without affecting stability.
Specialty Filters
Integrate separate Gold or Blue Streak Filters and Mist Filters to achieve unique, creative effects in your photography, offering a way to introduce artistic streaks or a mist-like atmosphere.

Tips for Optimal Use
  1. Ensure that each filter and base is securely attached through its magnetic mechanism to prevent any accidental detachment during use.
  2. Regularly clean your filters with our microfiber cloth to maintain optical clarity and prevent damage.
  3. Experiment with different filter combinations to discover the wide range of effects possible with the Freewell Magnetic VND System.


Function and Visual Effects: These filters are designed to transform point light sources into elongated streaks of color, creating an anamorphic-like effect, commonly used to produce cinematic visuals in filmmaking.

Available in both gold and blue variants
  1. Blue Streak Filter: Produces a cold, sci-fi atmosphere, ideal for futuristic or technology-themed visuals. It renders a calm, clear effect, suitable for night cityscapes or aquatic scenes.

  1. Gold Streak Filter: Adds warmth and nostalgia to scenes, perfect for capturing sunsets, desert landscapes, or any setting where a vintage, warm tone is desired.




  1. Effect: Provides a subtle, black-colored mist effect that softens the image slightly, reducing sharpness to create a beautiful, film-like atmosphere. It effectively softens highlights and reduces glare.
  2. Strengths: Available in 1/4 and 1/8 densities, with lower denominators indicating a stronger diffusion effect.
  3. Utility: Allows for the use of a larger Magnetic VND on smaller lens threads without needing a base ring.
  4. Construction: CNC machined aluminum, black anodized to prevent reflections.


Notes
Very Important: Must own Magnetic VND to use this step-up ring

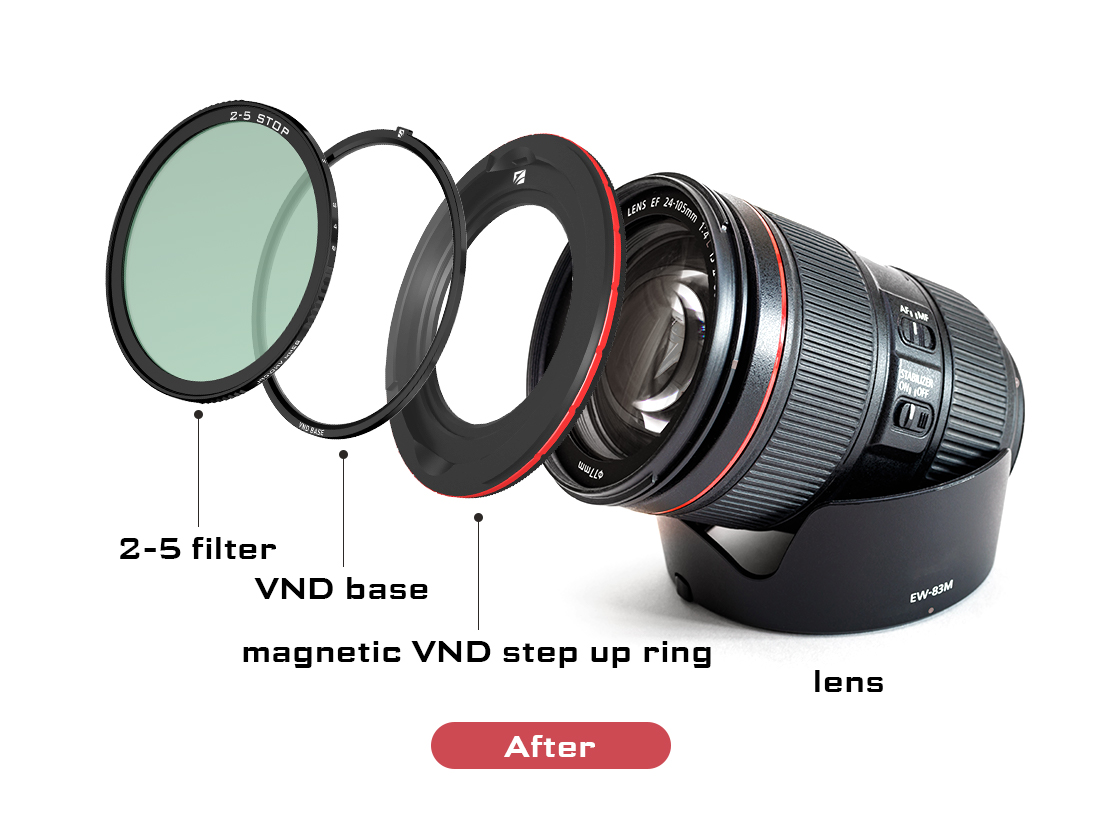

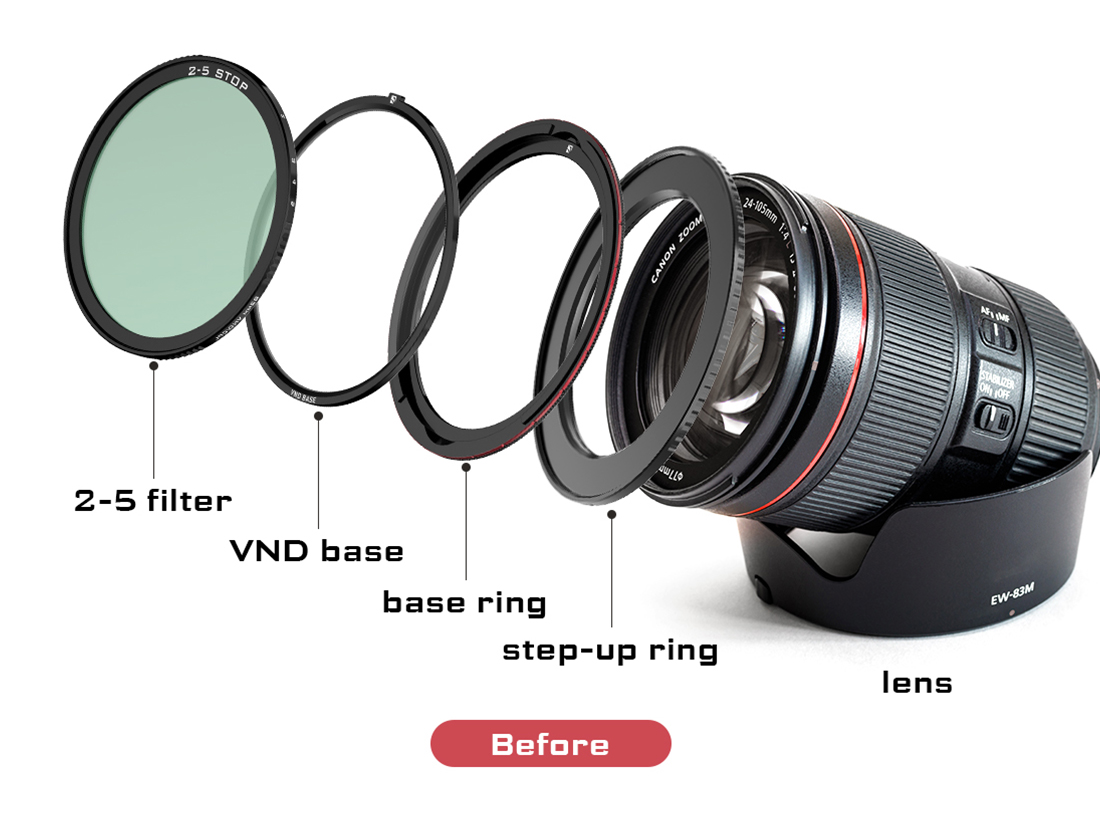

  1. What problems does it solve? Using this step-up ring, you won't require the base ring, which comes with Magnetic VND System; for example, if you want to mount 82mm Magnetic VND on your 67mm lens thread previously, you require a 67-82mm step-up + 82mm base ring on this new step-up ring you do not require that base ring anymore as step-up ring act as a base ring.
  2. Built: Made of CNC machined aluminum with black color to avoid any reflection or leakage during your photography.
Please take the illustrated picture below as a reference:


Notes
Very Important: Must own Magnetic VND to use this empty base ring
Info
Please choose the same thread size as your lens and filters, and thread it onto your camera lens to achieve Magnetic use with the Magnetic VND system.


Conclusion

Freewell's Magnetic VND Filter System represents a significant advancement in filter technology, providing photographers and videographers with a flexible, high-quality solution for managing exposure and enhancing image quality across various conditions. Embrace the simplicity and versatility of this system to elevate your photographic endeavors.


FAQ Section


Q: How do I determine my lens's thread size before purchasing a Magnetic VND System?

A: Locate the "ø" symbol followed by a number on the front of your lens; this number represents the thread size. Match this number with our thread size option available here.


Q: You are not selling the filter thread size. How do l use this system?

A: Please check here the list of step-up rings we're making or you can use our system with the empty Magnetic VND base ring threaded with any third-party step-up rings.


Q: What focal length lenses do you recommend using this filter system with?

A: As a manufacturer, we can test our filters on a limited number of lenses during this test we haven't got a vignette above 16 to 17 millimeters.


Q: Can I use a lens hood with this system?

A: No, you cannot. The diameter of the VND is bigger than the size of the lens hood; plus, if you want to install a lens hood over a VND filter, it would introduce a vignette into your image.


Q: What are the materials of the filter frame?

A: It's made out of a combination of aluminum with magnets with the CNC process.


Q: Is there a front thread on 2 to 5 and 6 to 9 stops?

A: There is no front thread and the reason for that is because we want to avoid vignetting.


Q: Why do I see some color shift?

A: With any VND filter on the market irrespective of its price, you will see a color shift. The reason is that the effect of VND is created by rotating two pieces of glass. So, with the coating process. We can reduce the color shift, but we cannot eliminate it nor can any other VND manufacturer on the market. This is the reason VND is used mainly for run-and-gun situation videos.


Q: Can I just purchase 2 to 5 or 6 to 9 stops?

A: No, this product will be available as a set only and you cannot buy parts separately. Each VND magnetic filter is made manually for the whole system to work.


Q: How can I use Eiger Matte Box with Magnetic VND system?
A: Please watch this video.

Q: If the Magnetic VND Mist filter works with the original VND system if i remove the VND from the system? Will mist filter work on its own with the empty VND holder?

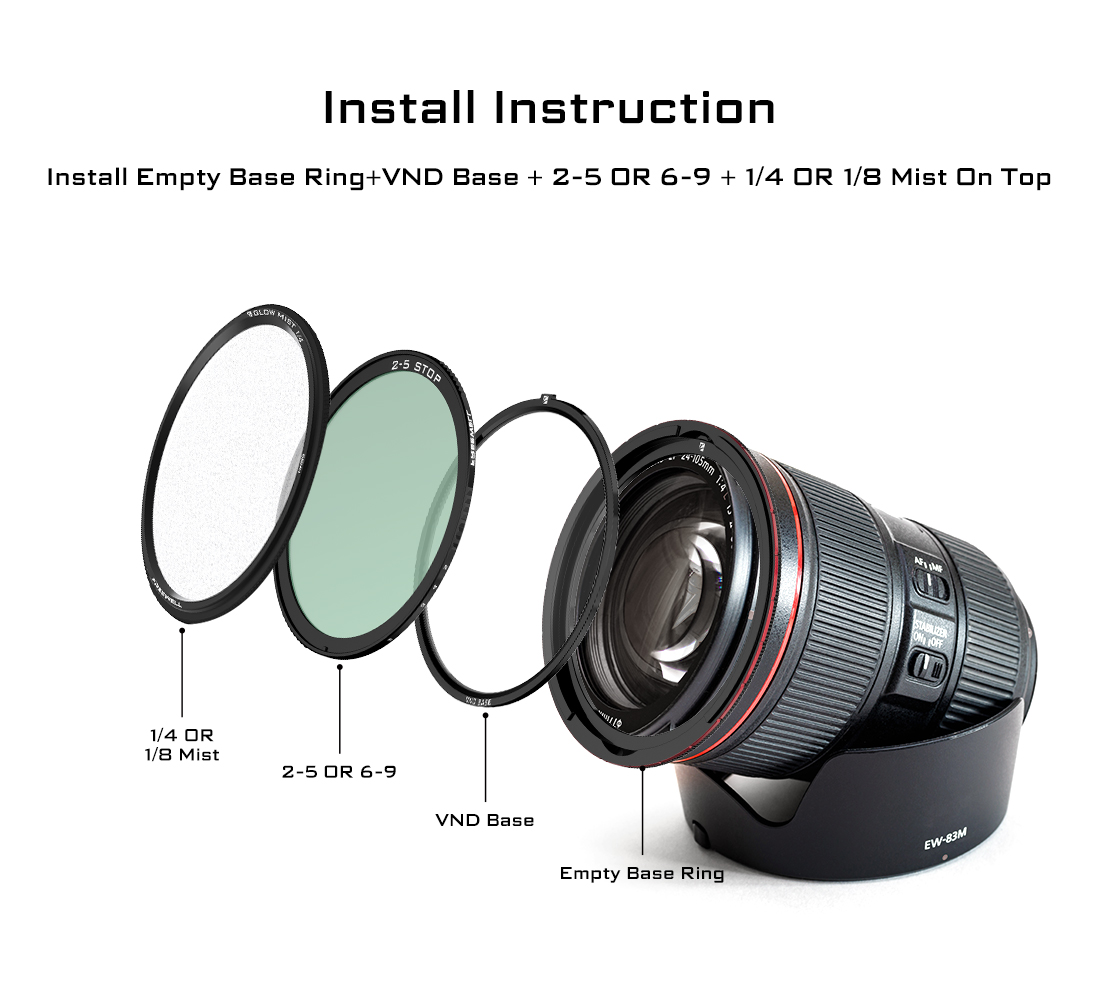

A: No. You can't remove the VND and use the mist filter independently. You need to attach the Empty base ring to the lens, and then put the VND base into the Empty base ring. Then attach the VND 2-5/VND6-9 filter. Finally, you need to attach the mist filter on top of the VND filter. Here's a video about the Magnetic VND mist filters effect.


Additional Resources

For a video tutorial on the Magnetic VND system, please visit the Magnetic VND System Tutorial.





Support and Warranty Information

The Freewell Magnetic VND system comes with a limited lifetime warranty against manufacturing defects. Please register your product here after purchase. For any support issues, contact us via this link.
